General

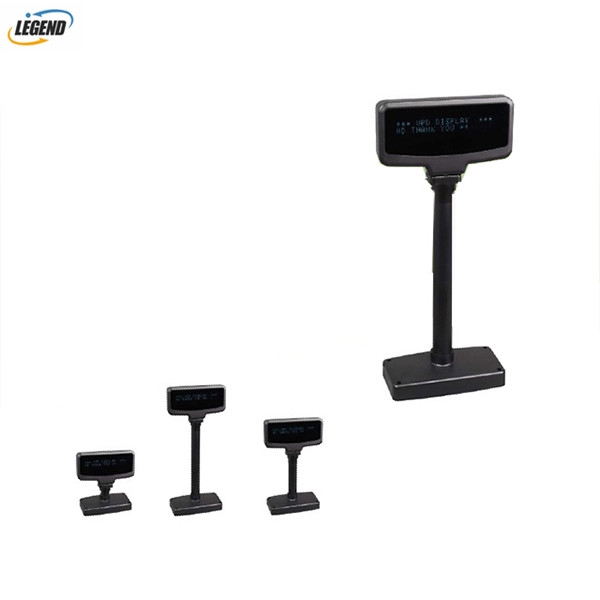

Display Method:Vacuum Fluorescent Display (Blue-green)
Number of characters:40(20 columns x 2 lines)
Brightness:500~1000 cd/m2
Character font:5 x 7 dot matrix
Character type:95 Alphanumeric, 32 International Characters
Character size:5.25 (W) x9.02 (H)mm
Dot Size (X x Y):0.86 x 1.05mm
Download characters:9 characters
Panel Dimension:220(W) x 45(D) x 125(H)mm
Pole Dimension:Per support length: 140(L) x 34.5(Dia)mm
Base Dimension:205(W) x 106(D) x 33(H)mm
Viewing Angle:Max. 90°
Horizontal Rotation:Max. 355°
Weight:Approx. 980 grams
Commands Mode
LD220, EPSON POS D101, AEDEX, UTC/S, UTC/P, ADM788, DSP800, CD5220, EMAX, LOGIC CONTROL
Language Support
FRANCE、GERMANY、U.K、DENMARKI、SWEDEN、ITALY、SPAIN、JAPAN、NORWAY、DENMARKII、SLAVONIC、
RUSSIA、Portuguese、Canadian French、Nordic、Turkish、Greek、West European Latin、CP858、CP860、WPC1252、CP857
(TURKISH)、polish、wpc1250、wpc1253（GREEK）、wpc1255（Hebrew）、wpc1251、CP866、CP852、CP737（DOSgreek）、
CP858、CP864（ Arabic）、Farsi（ Iran）
Interface
RS-232(serial) / USB
Connection
Baud rate:Direct connection 9600 or 19,200 bps
Reliability
MTBF:30,000 hours
Power
Consumption:5~24 VDC
Safety
EMC standards
