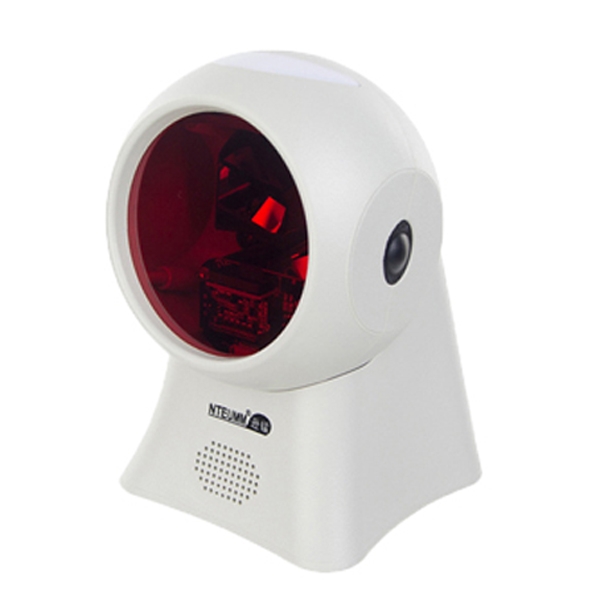

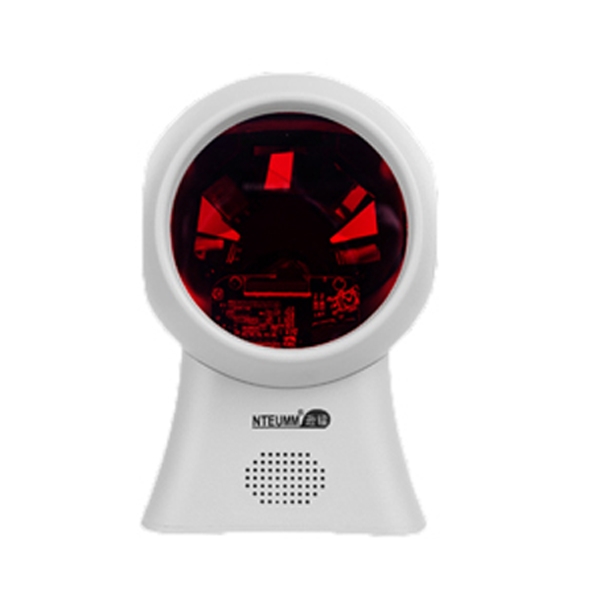

Omnidirectional Scanner User Manual

 Technical Parameters:

product model NT-2020

Size 15.5cm/10.0cm/10.9cm （Frame Included）

Weight 256g / 315g (Frame Included)

Voltage 5.0 VDC±10%

Rated Current 230 mA

Power 1 Watt

Frame Fixed-Mount

Color Black

Light Source Visible Laser Diode 650 nm

Scanning Angle Omni-directional ±50°/±50°/0-360° (Left and right, front and back, rotation)

PrintingContrastRatio The lowest reflectivity difference is 25%

Scanning Mode 20ScanLine Omni-directional Pattern;  5 Directions、4 Lines/Direction

Scanning Speed Omni-directional 1500 times /s

Depth Of Field 0mm-250mm @ 13 mil (100% UPC/EAN)

Rated Operating Range 5 mil : (38%) 1.0 - 5.0 cm

7.8 mil : (60%) 0 - 18.0 cm

10.4 mil : (80%) 0 - 22.0 cm

13 mil : (100%) 10 - 25.0 cm

Lowest Resolution 5 mil

Barcode Types UPC/EAN/JAN、UCC/EAN 128、Code 128、Code 39、Code 39 Trioptic、China postal Service Code 2 of 5 code、Interleaved 2 of 5、Industrial 2 of 5、Matrix 2 of 5、Code 93、Code 11、Codabar、MSI etc .Universal one -dimensional bar code

Interfaces USB 、RS 232、Keyboard Emulation

Operating temperature 0℃ to 40℃

Storage temperature -40℃ to 70℃

Operating humidity 5 to 95% (Non-condensing)

Shock Resistance Pass 1.2m free fall test

Light Resistance Accept Normal Indoor Lighting And Outdoor Natural Light (Directly Sunlight).

Fluorescent、Incandescent、Mercury Vapor And Sodium Vapor Lights: 450 Ft Candles (4,844 Lux)

Sunlight: 8000 Ft Candles (86,111 Lux)

Laser Level CDRH Ila Class Laser Product

Laser Level IEC 60825 Class 1 Laser Product

Advantage:

       Convenient   fast  durable
