Touch monitor

Touch monitor

15 Inch CAP Touch Monitor with USB Hub funciton

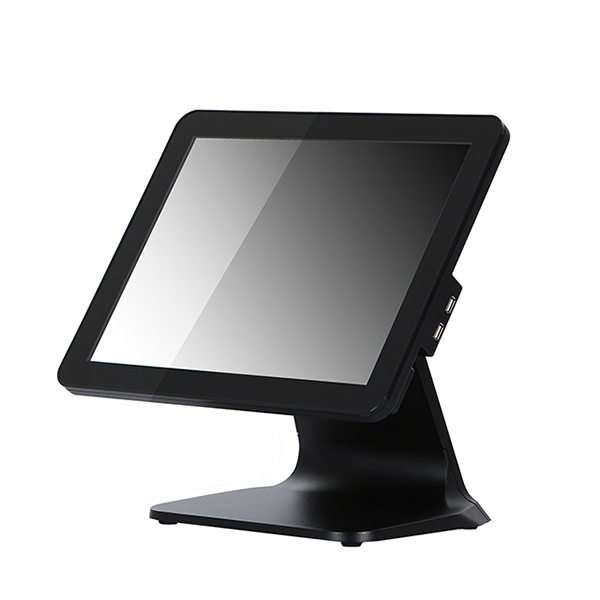

15 Inch Capacitive Touchscreen Monitor with Metal stand

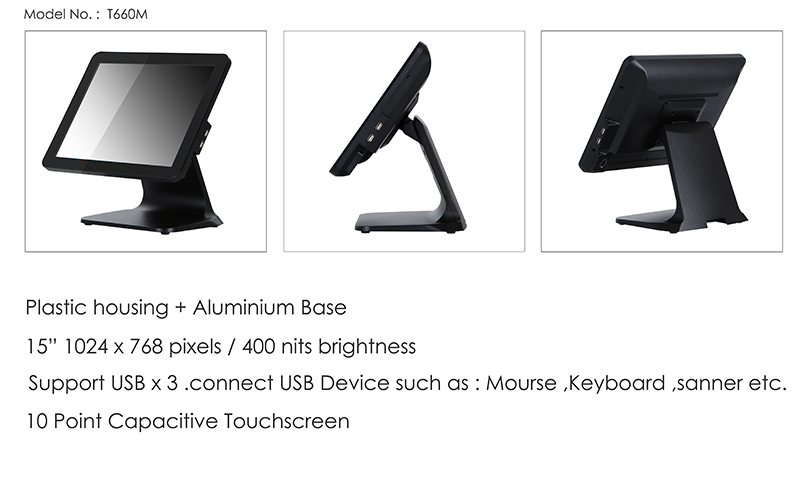

Model No.:  T660M

1. Professional Monitor Factory
2. Competitive Price and stable Quality
3. VGA /HDMI Connector /Flat Capacitive Touchscreen
4. Industrial Grade A LCD Display Panel ,with 400 Nits Brightness
5. Aluminum alloy Monitor Base for High-end Requirements ,and ABS Plastic Stand for Normal needs .
6. Apply to POS machine ,Assembled MSR Optional , PC
7. Support USB x 3,directly Connect with USB Device such as : Mouse ,Keyboard, Scanner , Pole VFD ....
Inquiry
     Panel Type   15"TFT LED Panel （Industrial Grade A )
     Aspect Ratio :   4: 3
     Resolution :    1024 (RGB) x 768 (XGA) Pixels

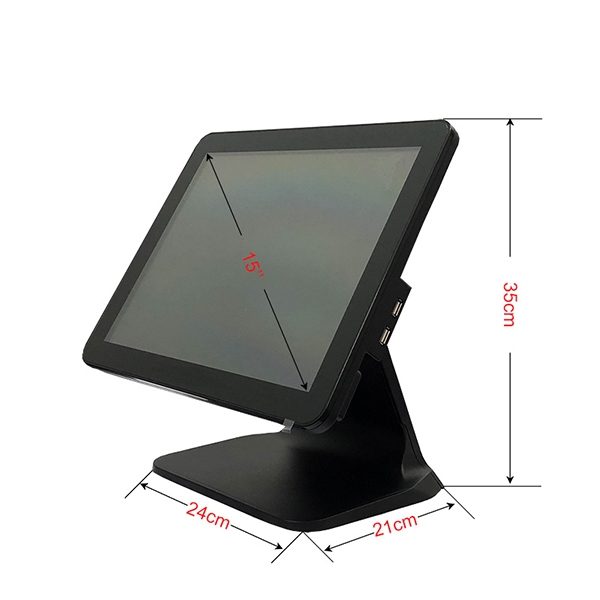

     Display Area :   304.128 x 228.096 mm(H/V)
     Pixel Pitch   0.297 x 0.297 mm
     Colors :     16.2M
     Brightness(nits)   400CD/m2
     Contast Ratio    800 :  1
     Response :   30ms
     Viewing Angle :    80°/80°/65°/80° (L/R/U/D)
      Backlight :   LED
      Touchscreen :   None  /Capacitive Optional
      Signal Inface :    VGA / HDMI Optional
      Colors System :   PAL/NTSC/SECAM
      Power Input :    AC 110V-240V  60Hz / DC 12V  2.5A
      Power Consumption :   ≤35W
      Lifttime :   50000 hours
     Operating Temperature:   0 ℃-70℃
     Storage Temperature :   -30℃-80℃
     Mounting Method :   Plastic / Aluminium Alloy Stand (Metal Base) x 2  (Optional) /VESA 75*75
     Accessories :   VGA Cable/USB/ DC Adaptor /Power Cable

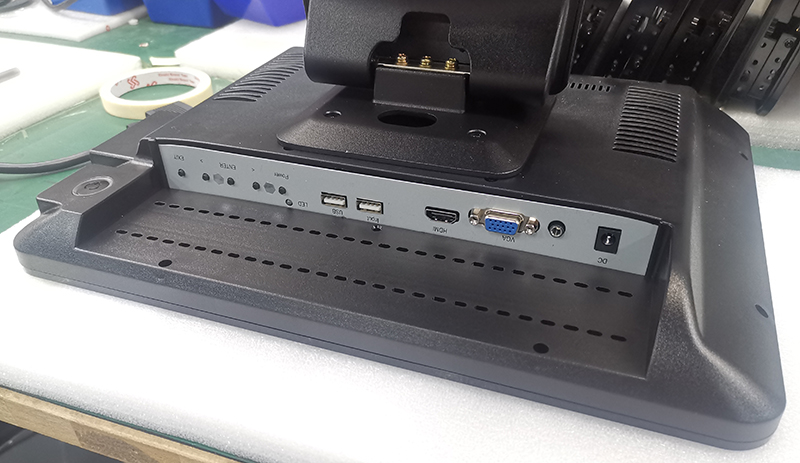

     I/O :     DC/HDMI/VGA/ USB Input / USB x 3
