Over view

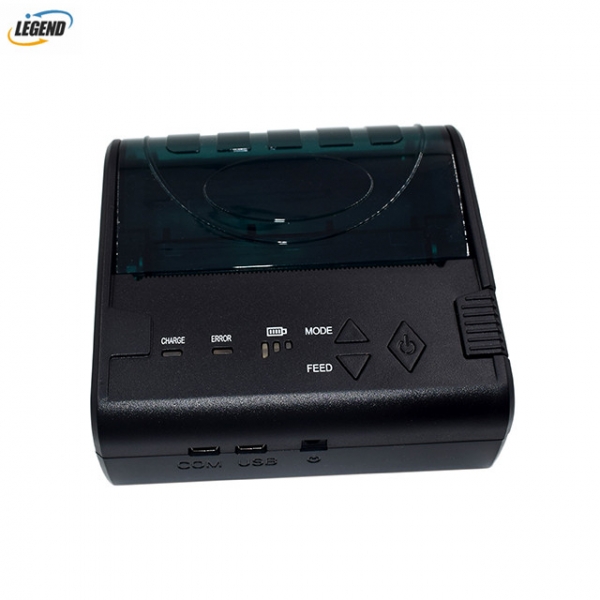

Multi-functional Display Screen (can be shown the capacity of battery, the status of bluetooth connection,
the status of printing, Paper out warning, the version of printer).It applies mobile products to supporting
the use, and suited to outdoor work environments.The feature has small size、light weight、reliable performance、
simple to connect、 easy to use.
Applications
the status of printing, Paper out warning, the version of printer).It applies mobile products to supporting
the use, and suited to outdoor work environments.The feature has small size、light weight、reliable performance、
simple to connect、 easy to use.
Applications
The mobile police system
The tobacco distribution system
The utility meter reading system
The mobile office / mobile logistics systems
The portable instrumentation
The testing equipment, ancillary equipment.
Low operating costs (no ribbons, ink cartridges)

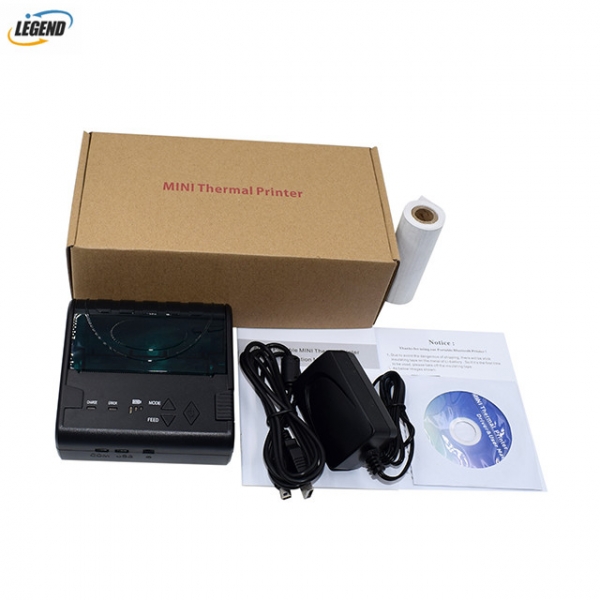

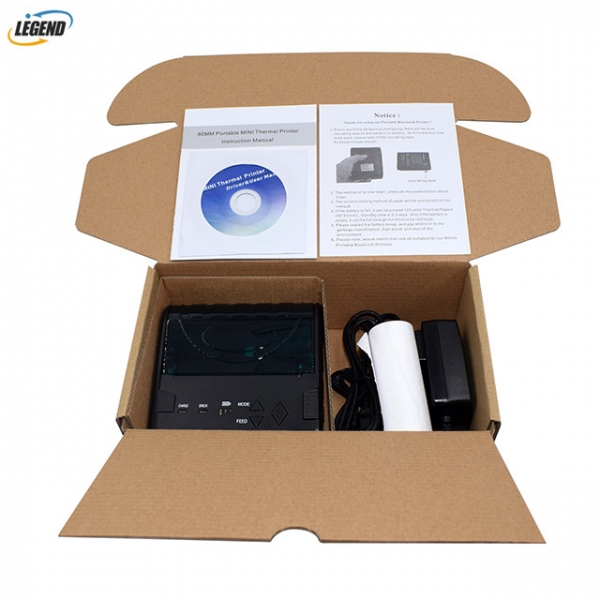

Weight: about 563g (including accessories: lithium-ion batteries, cable, test paper)
Size: 113*109*52mm
Parameter Details
Parameter Details
Printing Method: Thermal line printing
Print speed:< 90mm/sec
Reliability TPH Life: 100km
Resolution: 203DPI (8dot/mm)
Printing Width: 72mm (576dot)
Paper Width: 79±01mm
Roll Diameter: φ≤50mm
Paper Type: Thermal Paper

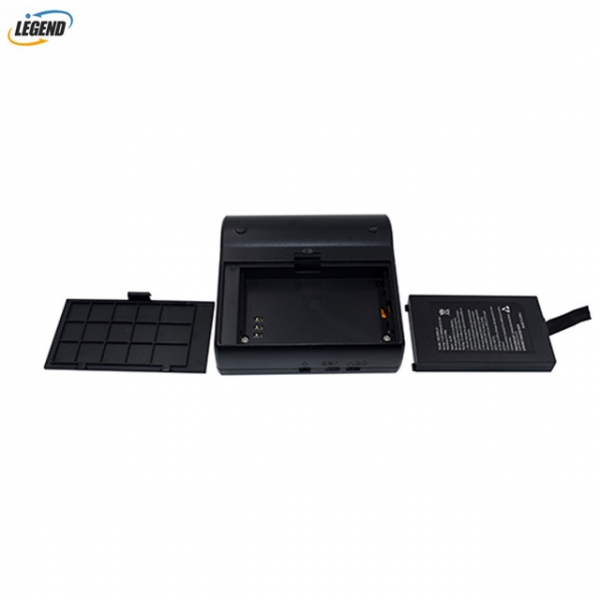

Power supply (optional): rechargeable lithium batteries
Battery: Lithium: 7.4VDC/2000mA,
Charging mode: DC 9V/1.5A
Support the battery display function
Print parameters: support to download the Logo trademark
Character size:384 dots/line
FontA:12*24dots,1.5(W)*3.0(H)mm
FontB:9*17dots,1.1(W)*2.1(H)mm
Simplified/Traditional:24*24dots,3.0(W)*3.0(H)mm
Printing Chinese character:Chinese: simplified Chinese 24x24 point. support 18030 font library,support Taiwan
and HK traditional(complex font)
and HK traditional(complex font)
ANK: ANK characters
Extendedcharactertable:
OEM437/Katakana/OEM850/OEM860/OEM863/OEM865/West Europe/Greek/Hebrew/EastEurope/Iran/WPC1252/OEM866/OEM852/OEM858/IranII/Latvian/Arabic/
PT151,1251/OEM747/WPC1257/Vietnam/OEM864/Hebrew/WPC1255/Thai
PT151,1251/OEM747/WPC1257/Vietnam/OEM864/Hebrew/WPC1255/Thai
Emulation: ESC/POS/STAR command
Interface: standard RS232/USB, Bluetooth 2.0/SPP agreement or infrared/IRCOMM agreement (optional).
Working Temperature: -10～50℃
Humidity: 10～90%
Bluetooth Wroking Distance: within 15m for Android device connection, within 30m for IOS device connection
